Using the Free-Form Drawing Tools

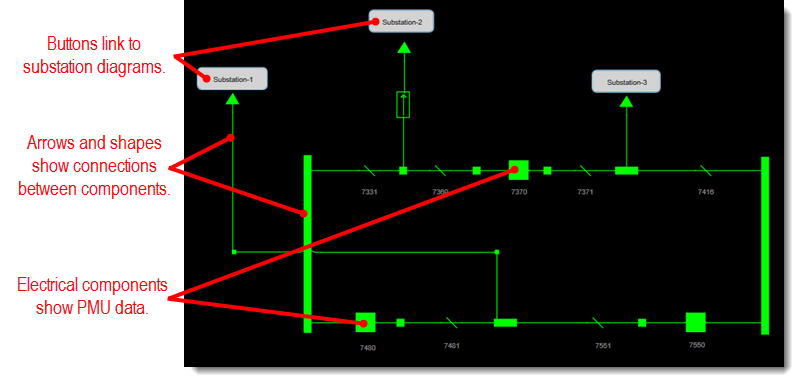

One-Line Diagram Kit offers free-form drawing tools for you to draw objects that can represent system and substation-level electrical components in your diagram. The following example shows a free-form drawing of a system-level diagram:

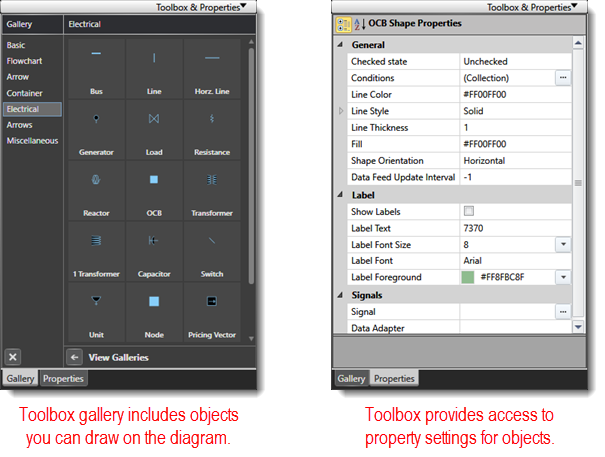

This diagram includes electrical components, arrows, shapes, and substation button links. You can draw these objects and set their properties, data sources, and conditional behaviors using the free-form toolbox.

Note: If the free-form toolbox is not visible on the screen, you can open it by selecting the Toggle Toolbox command on the Settings ribbon.
