Opening Diagrams from Files

You can open diagrams from files that are in EPG One-Line Diagram file format (.epgold file extension). You can open diagrams from files in both online and offline mode.

To open a diagram from a file:

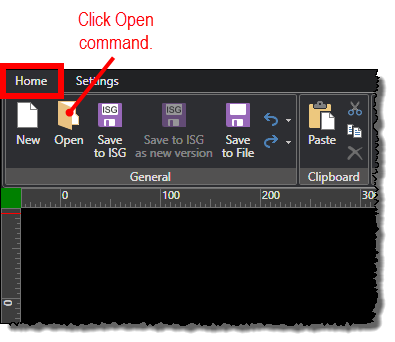

1. Under the Home tab, click the Open command.

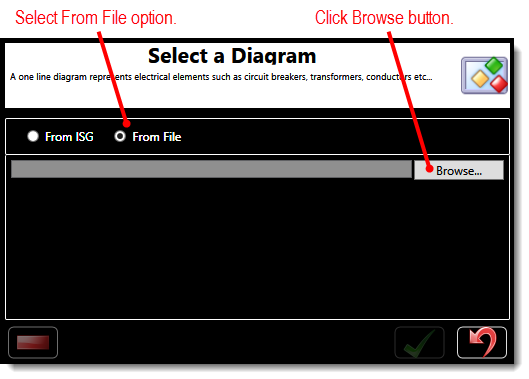

2. When the Select a Diagram screen opens, select the From File option, and then click the Browse button.

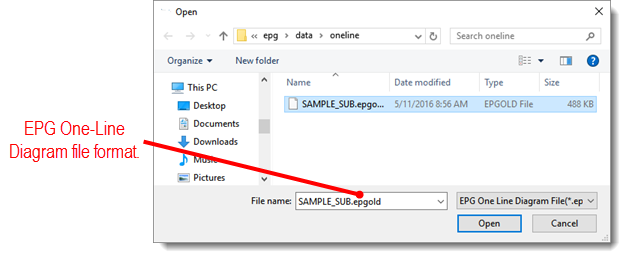

3. When the pop-up window opens to select a file, browse to and select the .epgold file you want to open.

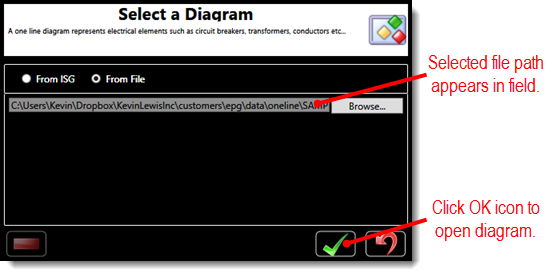

4. With the file path specified in the Browse field, click the OK icon (). The diagram opens onto the canvas.
