Working Offline

If you do not have network access or otherwise do not want to log in to the system, you can work with One-Line Diagram Kit in offline mode. When you work in offline mode, you cannot open and save diagrams on your ISG. You can only open and save diagrams to files. However, when you later log in and work in online mode, you will be able to open any saved diagram files and then save those diagrams to your ISG.

To work in offline mode:

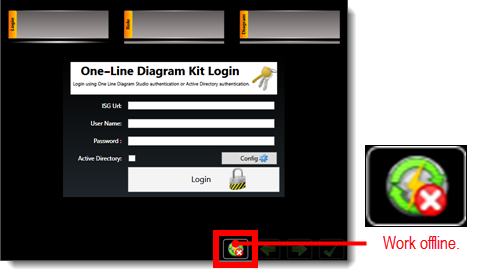

• After starting the One-Line Diagram Kit application, click the offline icon.

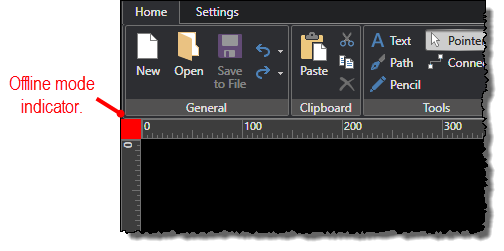

When the main window opens, you can confirm you are working offline by the red offline mode indicator at the top-left corner of the canvas.
