Deleting Diagrams from Your ISG

If you no longer use a diagram or a specific version of a diagram, you can delete it from your ISG. Before deleting a diagram, make sure it is not used in a view in the RTDMS client application.

To delete a diagram from your ISG:

1. Make sure you are working in online mode.

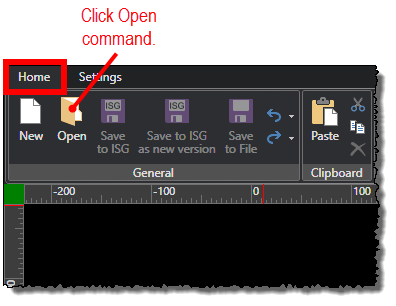

2. Under the Home tab, click the Open command.

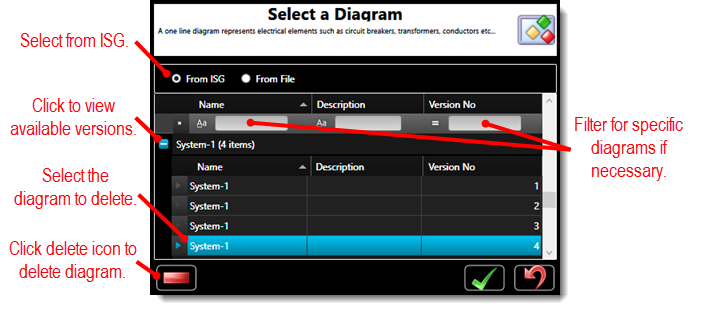

3. When the Select a Diagram screen opens, select the From ISG option if it is not already selected, and then select the diagram you want to delete. If the diagram has multiple versions, you can select a specific version to delete. If you have a large list of diagrams, you can use a filter to find a specific diagram.

Caution: You will not be prompted to confirm deletion. Be sure you have selected the diagram you want to delete before clicking the delete icon.

4. Click the delete icon ().
