One-Line Diagram Kit Help


Exporting Diagrams to Images

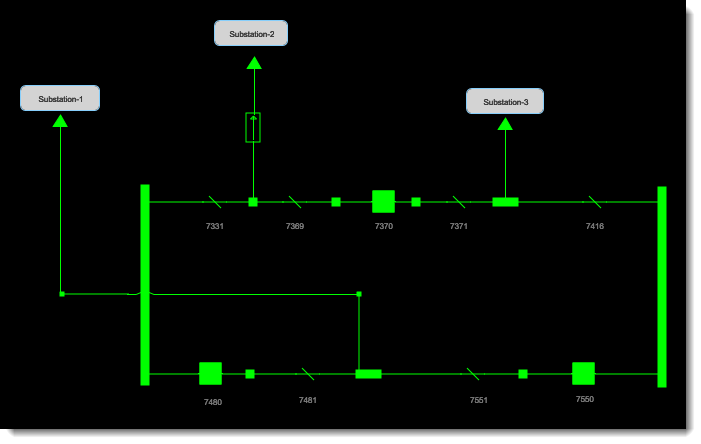

One-Line Diagram Kit allows you to export an open diagram to a PNG image file. This feature allows you to create static diagram images only. You cannot use the exported image to open or import as a diagram later.

To export an open diagram to an image:

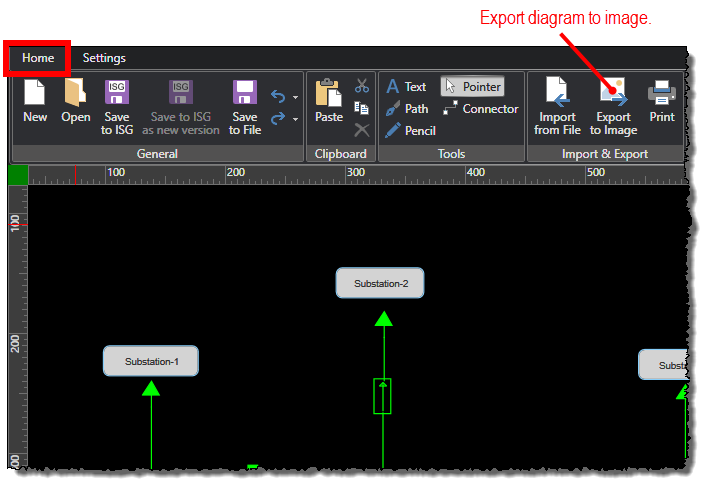

  1. Under the Home tab, click the Export to Image command.

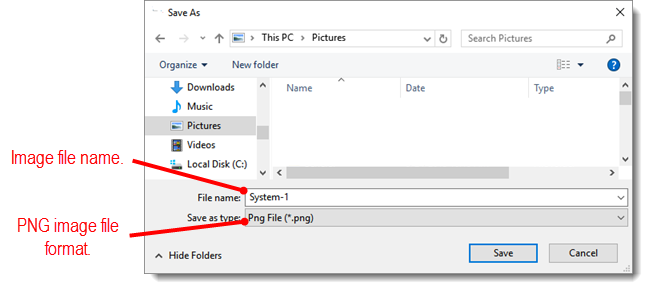

  1. When the pop-up window opens to save a file, browse to the folder where you want to save the image file and enter the file name you want to use.

  1. The diagram is saved as a PNG image file, which you can open and view in any image viewer or editor.
